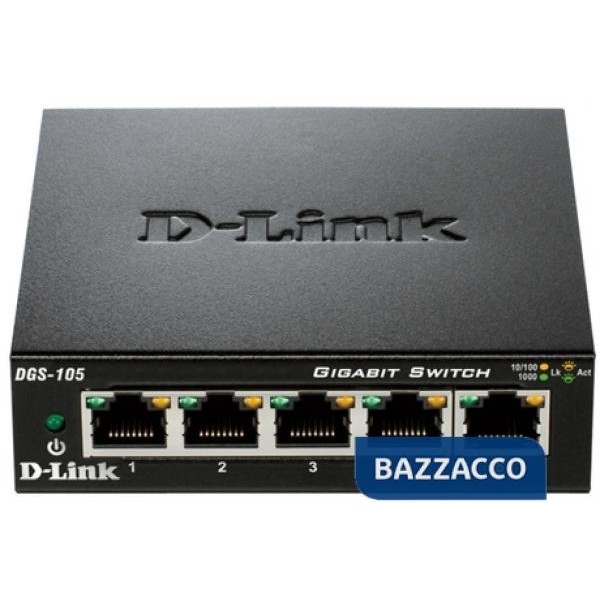

D-LINK SWITCH 5 PORTE GIGABIT CASE METALLICO

D-Link DGS-105. Trasmissione dati: 1 Gbit/s, 10/100/1000Mbps, 2000 Mbit/s, 10 Gbit/s. Networking: 2000 ENTRATE, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x. Caratteristiche di gestione: No gestito. Connettività: 1000BASE-T, 100BASE-TX, 10BASE-T. Memoria: 0.128 MB. Peso e dimensioni: 100 x 98 x 28 mm, 286 g. Gestione energetica: 3.10 W, 1 A, 5 V. Durata: 1688338 h. Certificati di sicurezza: FCC Class B, ICES-003 Class B, CE Class B, C-Tick Class B, VCCI Class B, cUL, CB, RoHS. Condizioni ambientali: 10 - 90 %, 0 - 50 °C, 10 - 70 °C, 5 - 90 %. Illuminazione/Allarmi: Link, Power, Si. Colori: Nero. Material: Metallo

Standards

•

• IEEE 802.3 10BASE-T Ethernet

• IEEE 802.3u 100BASE-TX Fast Ethernet

• IEEE 802.3ab 1000BASE-T Gigabit Ethernet

• ANSI/IEEE 802.3 NWay auto-negotiation

• IEEE 802.3x flow control

• IEEE 802.3az Energy Efficient Ethernet (EEE)


Layer2 Features

•

• MAC address table: 2K

• Auto MDI/MDIX crossover for all ports

• Store-and-forward switching scheme

• Full/half-duplex for Ethernet/Fast Ethernet speeds

• Full-duplex only for Gigabit Ethernet speed

• Jumbo Frames: 9000 Bytes


Switching fabric

•

• 10 Gbps


Data Transfer Rates

•

• Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)

• Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)

• Gigabit Ethernet: 2000 Mbps (full duplex)


Packet Filtering/Forwarding Rates

•

• Ethernet: 14,880 pps per port

• Fast Ethernet: 148,800 pps per port

• Gigabit Ethernet: 1,488,000 pps per port


RAM Buffer

•

• 128 KB


LED Indicators

•

• Per port: Link/Activity/Speed

• Per device: Power


Quality of Service (QoS)

•

• Supports 802.1p QoS

• 4 Queues, Strict Mode


Green features

•

• Energy Efficient Ethernet (EEE) standard

• D-Link Green: power saving by cable length detection

• RoHS compliant


Power

•

• External 5 V/1 A Level “V” Power Adapter


Power Consumption (DC input)

•

• Standby: 0.5 W.

• Maximum: 2.01 W.


MTBF

•

• 1,688,338 hours


Temperature

•

• Operating: 0 to 50 ˚C

• Storage: -10 to 70 ˚C


Humidity

•

• Operating: 10% to 90% RH non-condensing

• Storage: 5% to 90% RH non-condensing


Dimensions (W x D x H)

•

• 100 x 98 x 28 mm


Certifications

•

• FCC Class B

• ICES-003 Class B

• CE Class B

• C-Tick Class B

• VCCI Class B

• cUL

• CB
